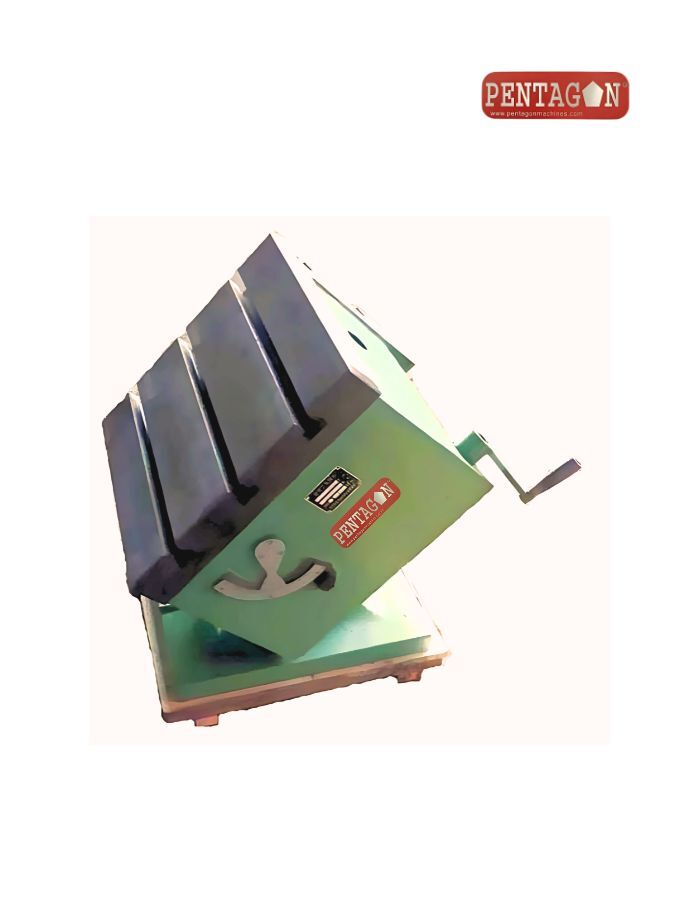

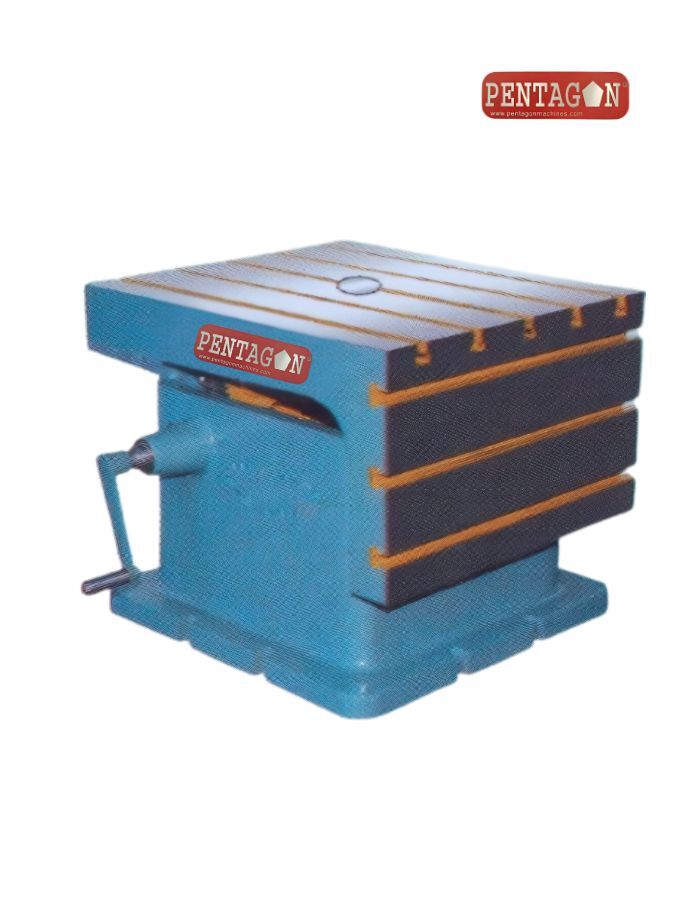

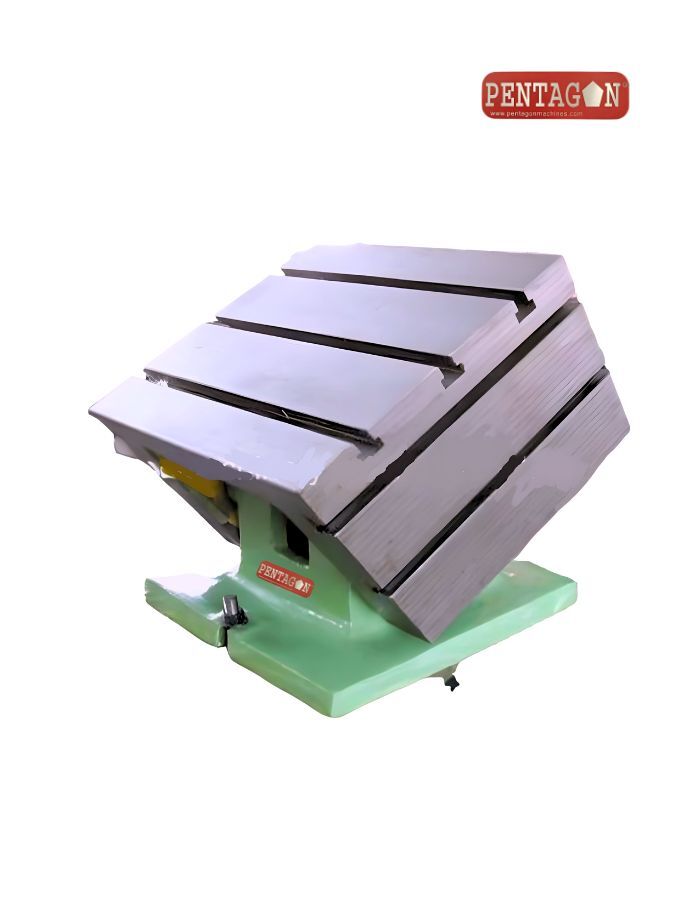

PENTAGON Tilting type box Table model PTBT825

PENTAGON Tilting type box Table model PTBT825 Specification

Rotation
Manual Handwheel

Model
PTBT825

Product Type
Surface Grinding Machine

General Use
Industrial Surface Grinding

Material
Cast Iron Body

Type
Tilting Box Table

Capacity
25-30 kg/hr

Weight (kg)
Approx. 1100 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Table Size
200 x 500 mm

Table Slide Way
V & Flat Type

Magnetic Chuck Size
200 x 500 mm

Grinding Wheel Size
200 x 20 x 31.75 mm

Grinding Wheel Speed
2800 RPM

Grinding Length
500 mm

Floor Space
1450 x 1200 mm

Fuel Tank Capacity
35 Litres

Spindle Speed
2800 RPM

Power
2 HP

Voltage
415V / 3 Phase

Dimension (L*W*H)
1700 x 1450 x 1450 mm

Feature
Tilting Table, Heavy Duty Construction, Precise Movement

Color
Industrial Grey / Blue

Number of Working Faces
Two

Main Motor
2 HP, 1440 RPM, 3-Phase

Max Grinding Height
225 mm

Hydraulic Motor
0.5 HP

Table Tilting Angle
Up to 45°

Surface Finish Accuracy
Up to 2 microns

Cross Feed Travel
215 mm

Lubrication System
Automatic Oil Lubrication

Working Speed
Variable Manual

Coolant Pump Motor
0.15 HP

Chuck Magnetism
High Retentive Electro-Magnetic

About PENTAGON Tilting type box Table model PTBT825

Experience the exclusive PENTAGON Tilting Type Box Table Model PTBT825a must-have addition to any industrial grinding lineup. Engineered with prodigious precision, this hot-selling model boasts a lofty 45 table tilt, variable manual speeds, and splendiferous 2-micron surface finish accuracy. The dual working faces, heavy-duty cast iron build, high retentive electro-magnetic chuck, and an automatic lubrication system ensure dependable performance. With a 2 HP main motor, hydraulic support, and substantial grinding capacity, PTBT825 offers outstanding reliability, making it indispensable for discerning manufacturers, suppliers, and traders across India.

Versatile Usage and Industrial Applications

The PENTAGON PTBT825 is designed for splendiferous industrial surface grinding, offering precise movement for commercial workshops, manufacturing units, and large-scale production facilities. Its flexibility suits diverse uses, including finishing, deburring, and flattening surfaces on metal components. Trusted by distributors, suppliers, and producers, the PTBT825 is perfect for industries requiring high-accuracy finishes and robust throughput, making it indispensable in machinery shops and industrial operations across India.

International Markets, Dispatching & Packaging Policies

PTBT825 enjoys strong demand in major export markets, extending from India to the domestic mar and global logistics hubs. Each unit is meticulously packaged for secure transit, ensuring pristine condition upon delivery. Our dispatching protocols are streamlined for efficient logistics, and sample policy details are available upon request. The model is favored among wholesalers and key industry players, reflecting its esteemed quality and reliability on the international stage.

FAQs of PENTAGON Tilting type box Table model PTBT825:

Q: How does the table tilting mechanism of the PTBT825 enhance usability?

A: The tilting mechanism allows the table to incline up to 45, enabling versatile surface grinding at various angles for improved flexibility and precision in different applications.

Q: What are the key benefits of choosing the PTBT825 for industrial surface grinding?

A: PTBT825 delivers lofty surface finish accuracy (up to 2 microns), heavy-duty construction, high magnetic retention, and reliable dual working facesmaking it ideal for demanding commercial and industrial settings.

Q: Where can the PTBT825 be used and who are its main users?

A: This model is designed for use in industrial workshops, manufacturing plants, and machine shops. Main users include manufacturers, distributors, suppliers, traders, and wholesalers involved in metal surface finishing and fabrication.

Q: What packaging and dispatching process is used for sending the PTBT825 to customers?

A: The PTBT825 is carefully packaged in secure crates to prevent damage during transit. Our logistics team ensures timely dispatching to both domestic and international markets, maintaining product integrity during delivery.

Q: What is the typical process for ordering and receiving a PTBT825 Table Model?

A: Customers can place orders through authorized distributors or directly with the manufacturer. Upon confirmation, logistics and dispatch teams handle secure packaging, and delivery schedules are coordinated based on destination.
