Manual type Hydraulic Stacker

About Manual type Hydraulic Stacker

Hand-operated manual stackers are essential tools in warehouses, factories, and retail environments for lifting, stacking, and transporting goods efficiently without the need for electricity or fuel. They are particularly beneficial in areas with limited space or where powered equipment is impractical

1. Manual Hydraulic Lifting Mechanism

Utilizing a hydraulic pump, these stackers allow operators to lift heavy loads with minimal effort. The lifting height typically ranges from 85 mm to 3,000 mm, depending on the model and capacity. Some models offer both hand and foot-operated pumps for versatility.

2. Load Capacity

Manual stackers come in various capacities, generally ranging from 500 kg to 3,000 kg, accommodating different material handling needs.

3. Compact and Maneuverable Design

Designed for tight spaces, manual stackers feature a compact chassis and small turning radius, making them ideal for navigating narrow aisles and congested areas.

4. Safety Features

To ensure operator safety, manual stackers are equipped with features such as foot brakes, locking mechanisms, and stabilizing legs. These features help prevent accidents and injuries during operation.

5. Ergonomic Operation

Many models are designed with ergonomic handles and foot pedals, reducing physical strain on operators and enhancing comfort during use.

6. Durability and Low Maintenance

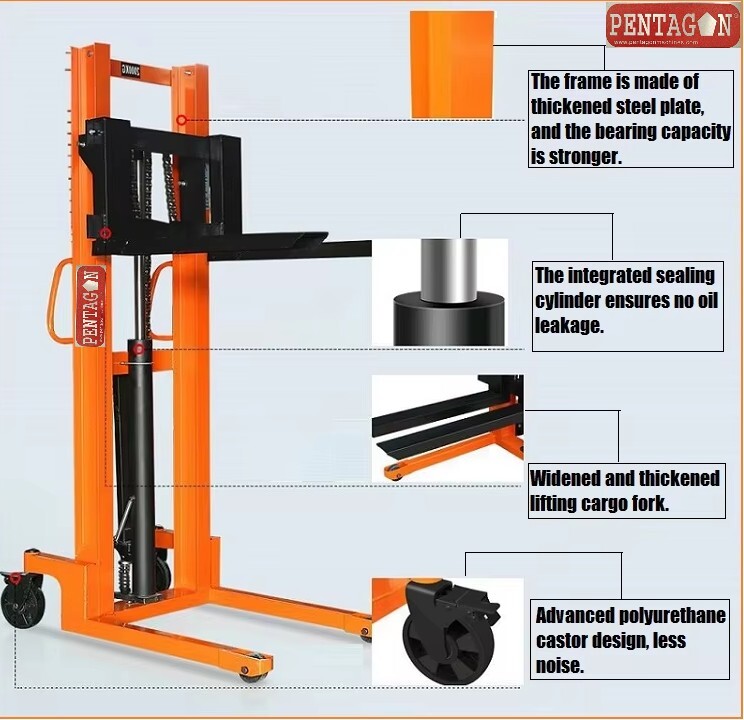

Constructed from heavy-duty steel and equipped with quality hydraulic components, manual stackers are built to withstand rigorous use. Their simple mechanical design results in lower maintenance requirements and reduced downtime.

7. Versatility

Manual stackers are versatile tools suitable for various applications, including lifting pallets, stacking goods, and transporting materials within warehouses or production areas.

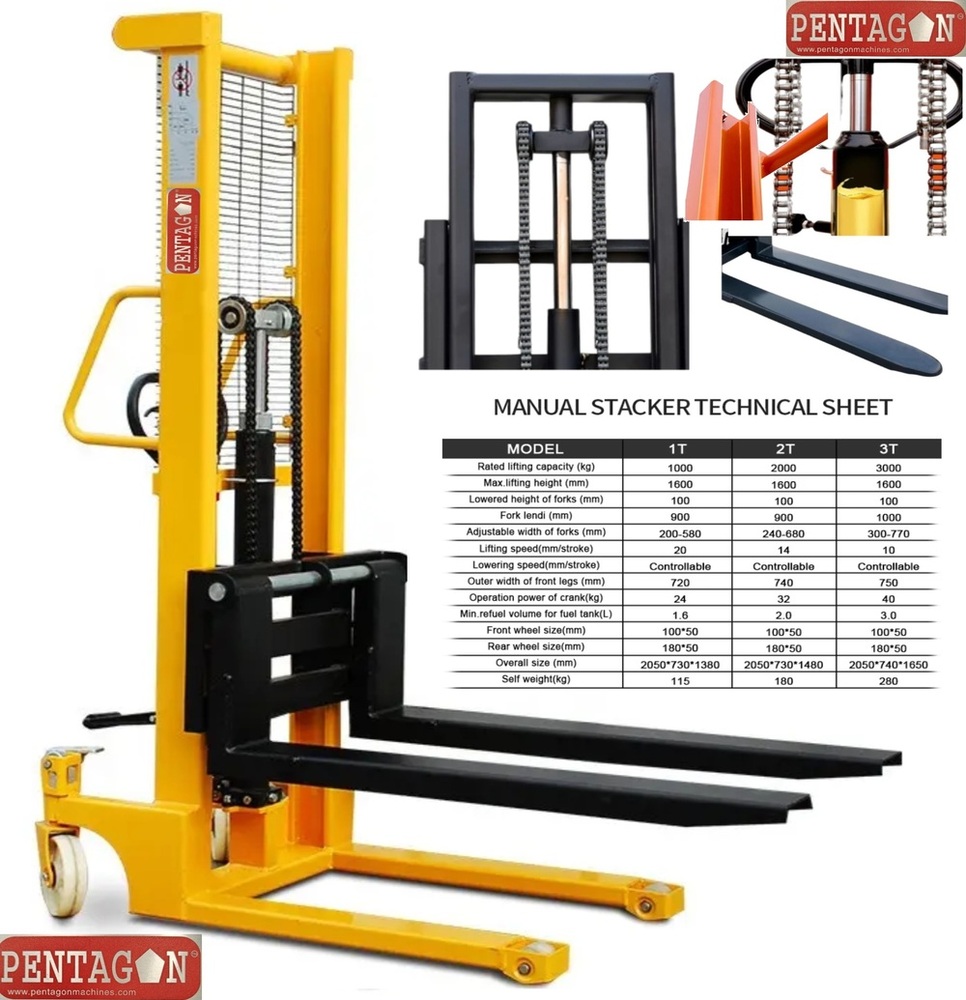

Tech Details :

Type of Product : Manual Forklift Stacker

Capacity : 2000 Kgs

Fork Length : 800 mm

Front Wheel : 180*50 mm

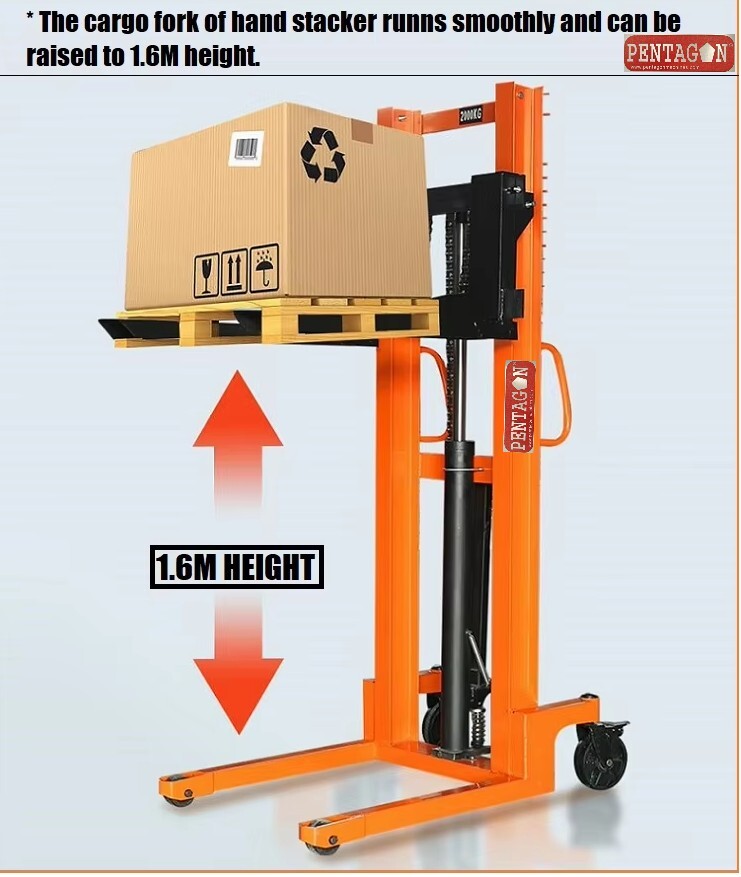

Max. Lifting Height : 1600 mm

Material Grade : Q235B

IBeam : 12#

Over all width : 745 mm

Self weight : 176 Kgs
