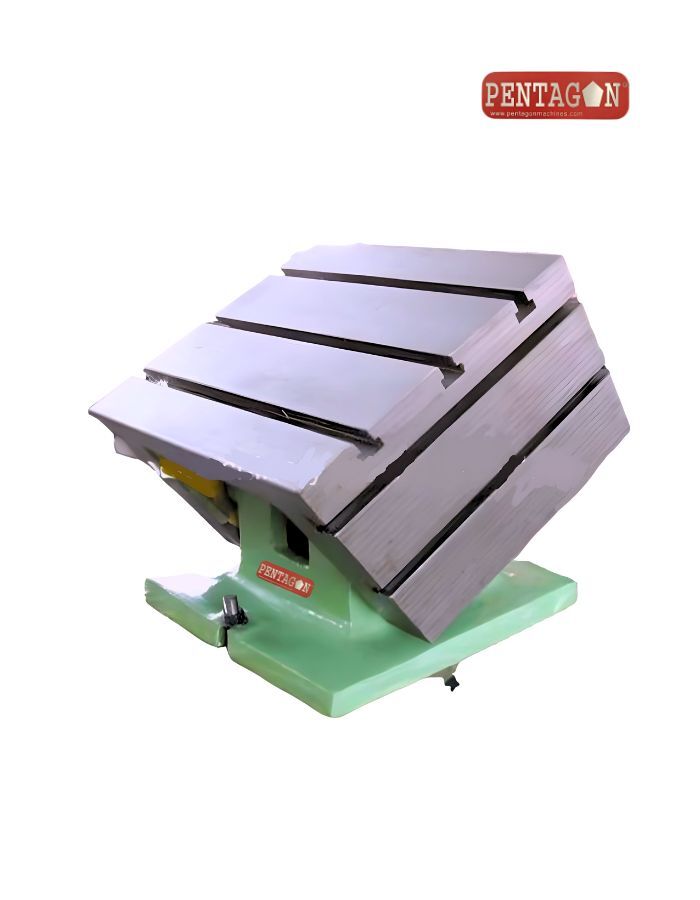

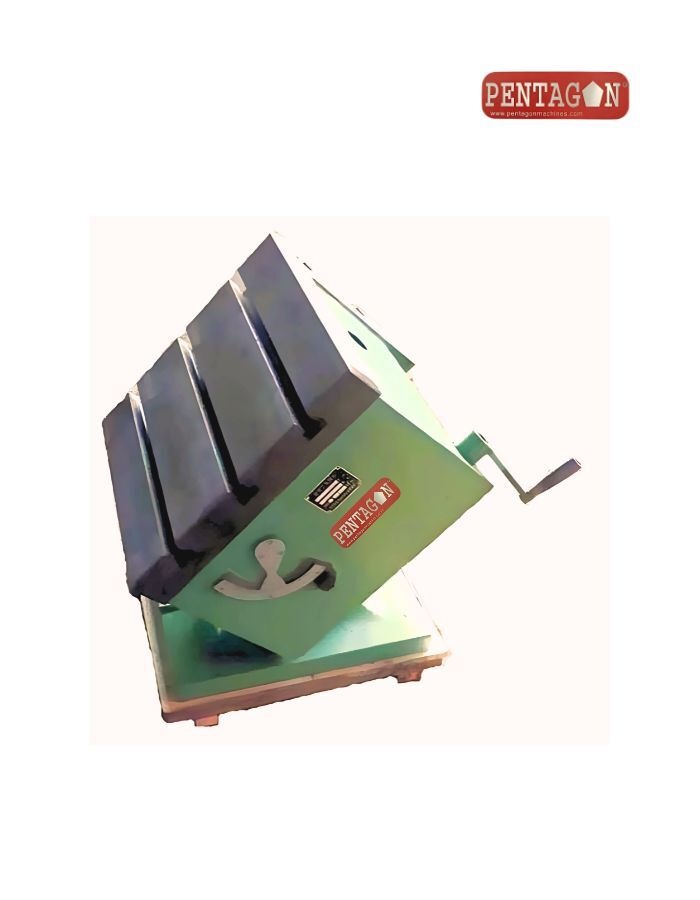

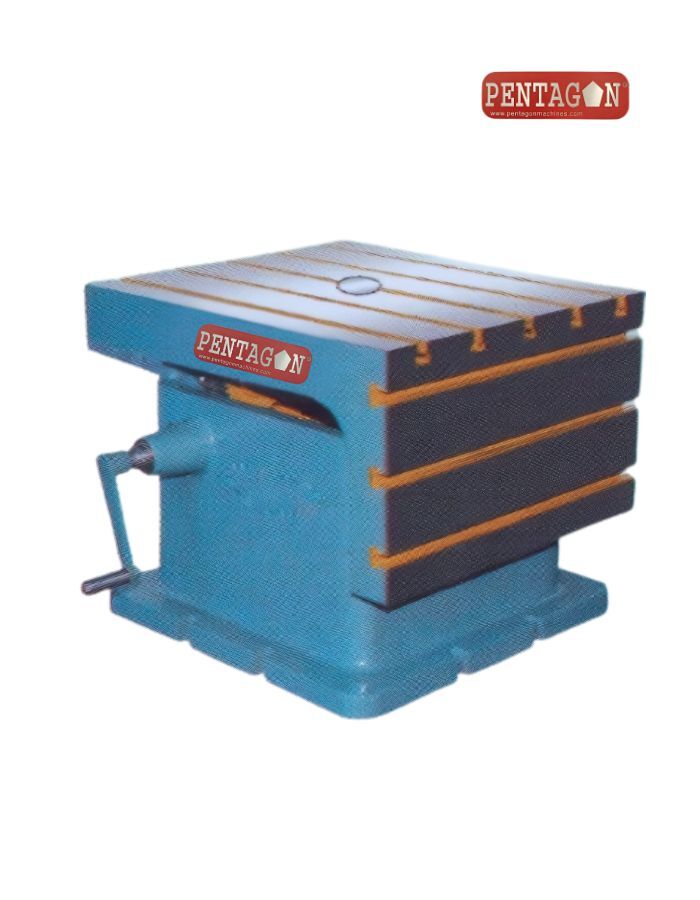

PENTAGON Tilting type box Table model PTBT600
PENTAGON Tilting type box Table model PTBT600 Specification
- General Use
- Industrial
- Material
- Cast Iron
- Computerized
- No
- Automatic
- No
- CNC Or Not
- Normal
- Control System
- Manual
- Feature
- ECO Friendly
- Warranty
- 1 Year
PENTAGON Tilting type box Table model PTBT600 Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 7 Days
- Main Domestic Market
- All India
About PENTAGON Tilting type box Table model PTBT600
PENTAGON Tilting type box Table model PTBT600 with dimension 600 x 500 X 500 mm suitable for radial drilling machine models Z3050x16/1, RM62/RM63/RM65 and VBR615/VBR618 and other equivalent Radial drilling machine models
Minimum Order Quantity: 1 Pcs
Parts Available: Yes
After Sale Services: Yes
| 1. High density, close-grained and high strength cast iron tilting worktables, used as tilting worktables on radial drill presses. Adjustable tilting angles 0-90 degrees |
| 2. As machine accessories to assist the machining of drilling, reaming, counter-boring, spot facing, tapping threads etc |
| 3. Top worktable: 600x600mm with T-slot 3 Nos-22mm-150mm (adjacent t slots distance) |
| 4. Side worktable: 600x420mm with T-slot 2nos-22mm-150mm (Adjacent T slots distance) |
| 1. LENGTH | 600 mm |
| 2. WIDTH | 500 mm |
| 3. HEIGHT | 500 mm |
| 4. T SLOT WIDTH | 22 mm |
| 5. ADJUSTABLE TILTING ANGLE | 0 - 90 DEGREE |
| 6. BASE SIZE | 600x500 mm |
| 7. FIXING HOLE ON BASE | 2 Nos |
| 8. NET WEIGHT | 340 Kgs. |
Durable Cast Iron Construction
The PTBT600 boasts a solid cast iron build, providing excellent durability and stability for intensive industrial applications. Its resilient framework helps reduce vibration during operations, ensuring enhanced precision and longevity in demanding work environments.
Manual Tilting Control System
With its four-point manual control system, the PTBT600 allows precise and easy adjustment of the tabletop angle for varied machining or inspection tasks. This manual operation provides users with direct feedback and greater control over positioning, suitable for diverse industrial needs.
Eco-Friendly and Reliable
This tilting type box table is crafted with sustainability in mind, using materials and processes that are environmentally conscious. Supported by a one-year warranty, the PTBT600 offers peace of mind and demonstrates long-term reliability for industrial users across India.
FAQs of PENTAGON Tilting type box Table model PTBT600:
Q: How do I operate the tilting function on the PTBT600 box table?
A: The PTBT600 features a manual control system for tilting. Simply release the locking mechanism, adjust the tabletop to your desired angle using the manual levers, and securely lock it in place for stable operation.Q: What makes the PTBT600 suitable for industrial use?
A: Constructed from premium cast iron, the PTBT600 is engineered to withstand rigorous industrial processes. Its robust design provides stability and resistance to wear, making it ideal for machining, assembly, and inspection in factories and workshops.Q: When should I use the PTBT600 tilting box table?
A: The PTBT600 is most beneficial for processes that require precise angle adjustments, such as component mounting, measuring, or fine machining. Its manual tilting feature is perfect for applications where customizable angles enhance productivity and accuracy.Q: Where can I purchase the PTBT600 box table in India?
A: The PTBT600 is available through authorized distributors, importers, manufacturers, producers, suppliers, traders, and wholesalers across India. You can contact Pentagon or check their official network for purchase information.Q: What is the process for maintaining the PTBT600?
A: Routine maintenance includes cleaning the surface, checking for wear on the manual controls, lubricating moving parts as necessary, and verifying that the tilting mechanism locks securely. Regular inspections help ensure optimal performance and longevity.Q: How does the PTBT600 benefit my operation?
A: By providing accurate and easy angle adjustments, the PTBT600 enhances the flexibility of your production or inspection process. Its sturdy build minimizes vibration, contributing to greater workpiece accuracy and operator safety.Tell us about your requirement
