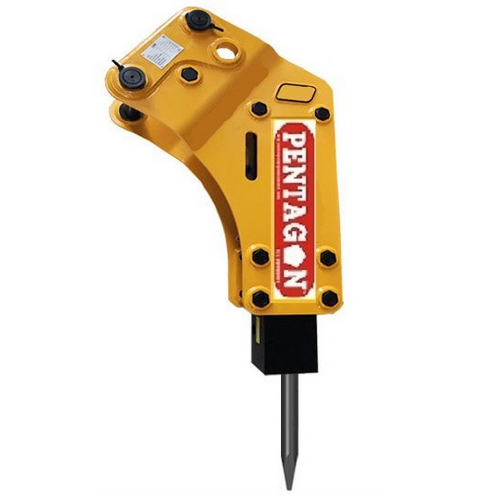

High Performance Hydraulic Rock Breaker

High Performance Hydraulic Rock Breaker Specification

Model
Heavy Duty Series

Product Type
Hydraulic Rock Breaker

General Use
Breaking or demolishing rocks and concrete in construction and mining projects

Material
Stainless Steel

Capacity
Depend on Carrier capacity - Up to 32 tons Ton

Weight (kg)
1600 - 1850 kg (as per model) Kilograms (kg)

Computerized
No

Automatic
Yes

Dimension (L*W*H)
Approx. 2100 x 450 x 550 mm Millimeter (mm)

Feature
High Impact Energy, Low Noise, Anti-blank Firing System, Easy Maintenance

Color
Yellow

Warranty
1 Year

Required Oil Flow
120-170 L/Min

Mounting Type
Side & Top Mount Options

Temperature Range
-20C to +55C

Tool Diameter
135 mm

Suitable Carrier Weight
20-32 Tons

Operating Pressure
160-180 Bar

Noise Level
Low Noise Design

Impact Energy
High Impact (Class-leading for heavy duty applications)

Service Support
On-site and Spare Parts Support

Chisel Type
Moil/Flat/Conical (Customizable)

Structure
Monoblock (No Tie Rods)

Piston Stroke Length
Long Stroke for Maximum Power

High Performance Hydraulic Rock Breaker Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About High Performance Hydraulic Rock Breaker

Experience world-class performance at an unbeatable price with our Heavy Duty Hydraulic Rock Breaker, built for superior results in mining, quarrying, demolition, and construction. Operating at 160-180 Bar with a high-impact, long-stroke piston, this enlightened machine offers exceptional energy output for challenging tasks. Its advanced, low-noise design ensures minimal disturbance, while anti-blank firing, easy maintenance, and monoblock structure guarantee reliability. Benefit from limited stock exclusive discounts, on-site service support, and versatile mounting solutionsmaking this hydraulic breaker the ultimate choice for professionals across India.

Precision Application and Robust Material Features

The Hydraulic Rock Breaker is engineered for heavy-duty breaking and demolition, suitable for use with excavators weighing 20-32 tons. Simply mount the unit using side or top mount options, activate the hydraulic controls, and select your chisel type for efficient rock or concrete fragmentation. Crafted from durable stainless steel, the monoblock design ensures lasting performance, while the long piston stroke delivers superior power for all your mining, construction, or demolition needs.

Certifications, Export Markets, and Sample Availability

Our hydraulic breaker complies with recognized quality certifications, ensuring robust and reliable exchange worldwide. For clients looking to evaluate performance first-hand, samples are available upon request. We are actively exporting to markets across Asia, Africa, and the Middle East, with secure transportation and specialized packaging for each unit. As a trusted distributor, importer, and manufacturer in India, we streamline every stage from production to delivery, ensuring customer satisfaction with every transaction.

FAQs of Hydraulic Rock Breaker:

Q: How do I install the Hydraulic Rock Breaker on my excavator?

A: Installation is straightforwarduse the provided side or top mounting brackets to securely attach the breaker to your 20-32 ton excavator, following the supplied manual for hydraulic and mechanical connections.

Q: What types of chisels are available with this rock breaker?

A: You can choose between moil, flat, or conical chisels, all customizable to match your specific application needs, whether its mining, demolition, or quarrying.

Q: Where can I get after-sales service and spare parts support?

A: We offer on-site service and spare parts across India, ensuring prompt maintenance and reliable support for your hydraulic breaker to minimize downtime.

Q: What material is the Hydraulic Rock Breaker made of?

A: This model features a robust, monoblock structure constructed from high-grade stainless steel, providing enhanced durability and reduced maintenance requirements.

Q: What are the benefits of the anti-blank firing system?

A: The anti-blank firing system extends the lifespan of the breaker by preventing damage when operating without load, ensuring safer and more efficient operation.
