Magnetic Lifter model PML-2000

Magnetic Lifter model PML-2000 Specification

Features
Good Quality

Usage
Industrial

Condition
New

Size
Standard Sizes

Color
Yellow

Magnetic Lifter model PML-2000 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-10 Days

Main Domestic Market
All India

About Magnetic Lifter model PML-2000

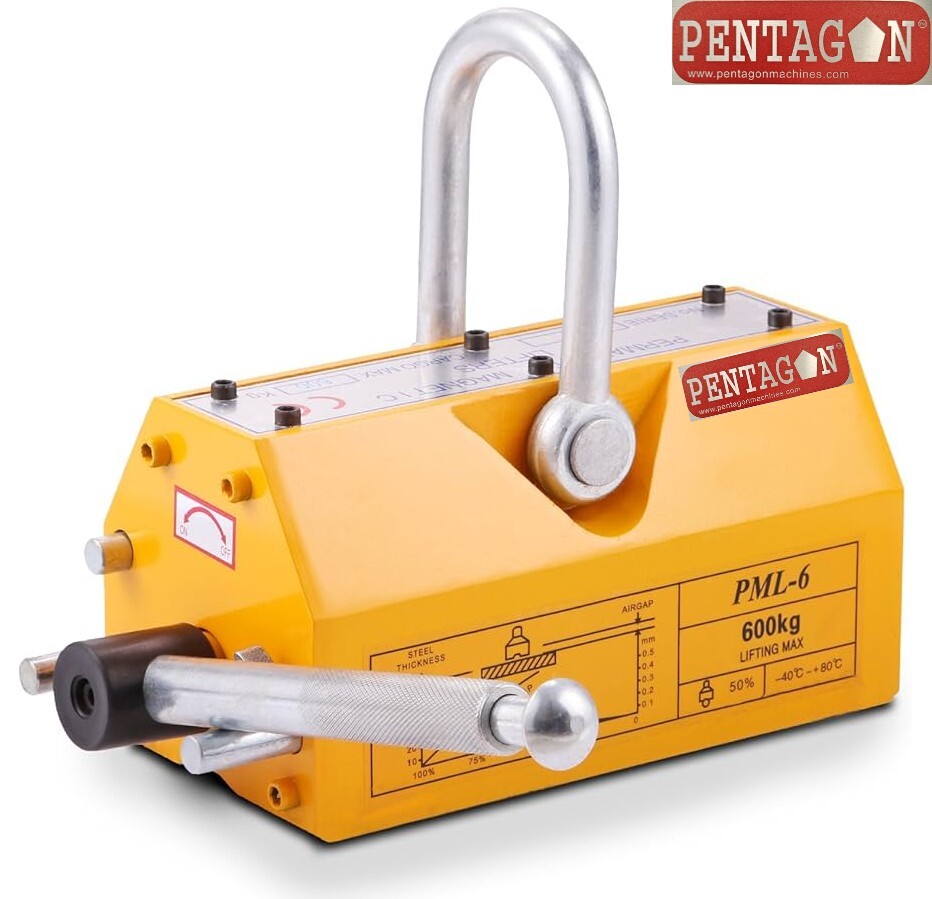

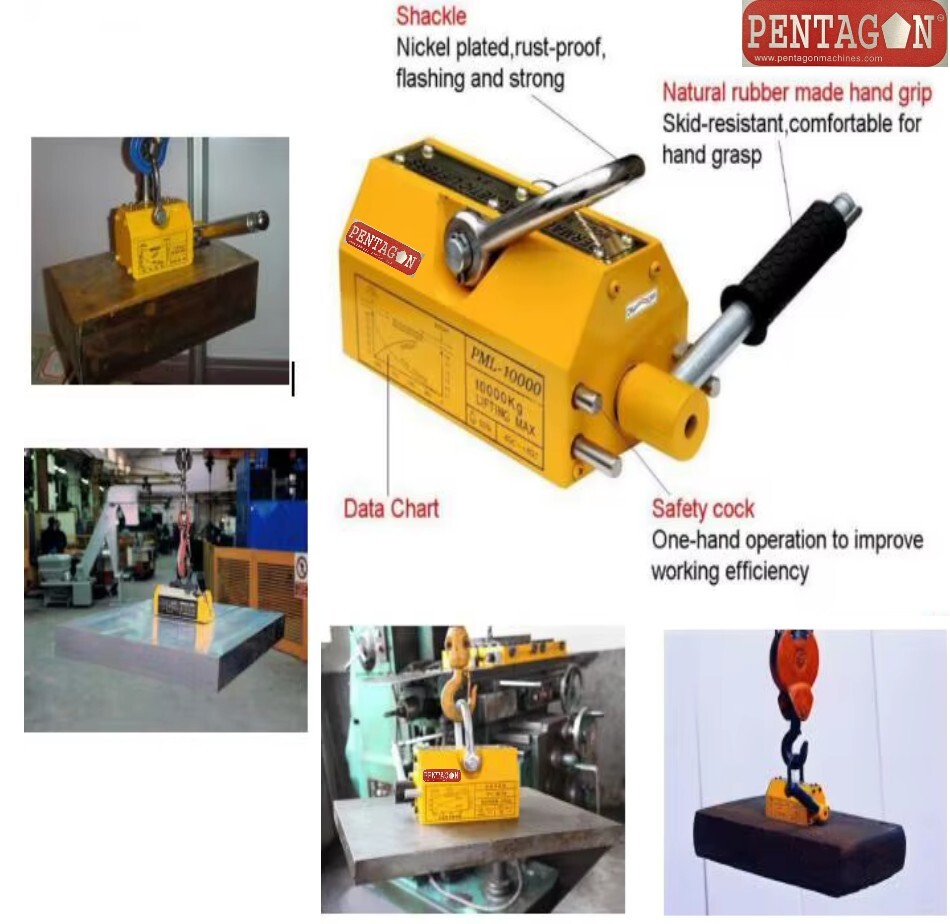

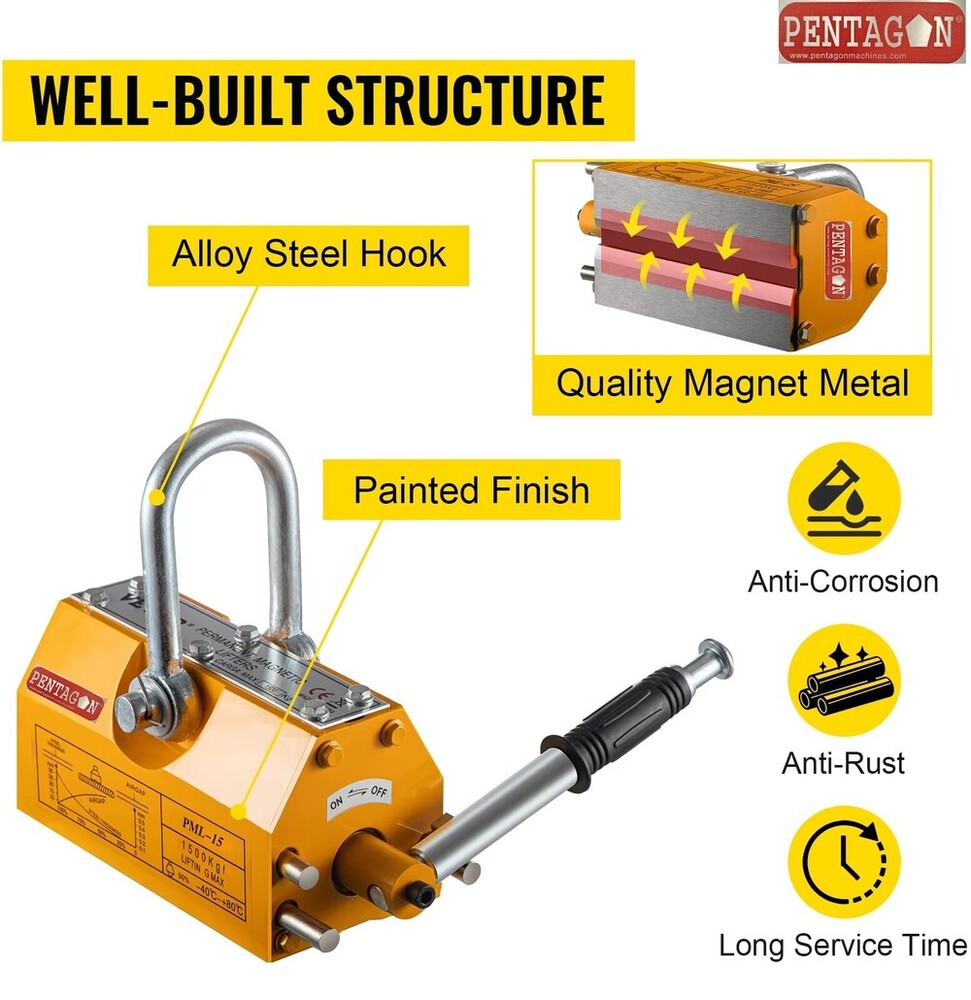

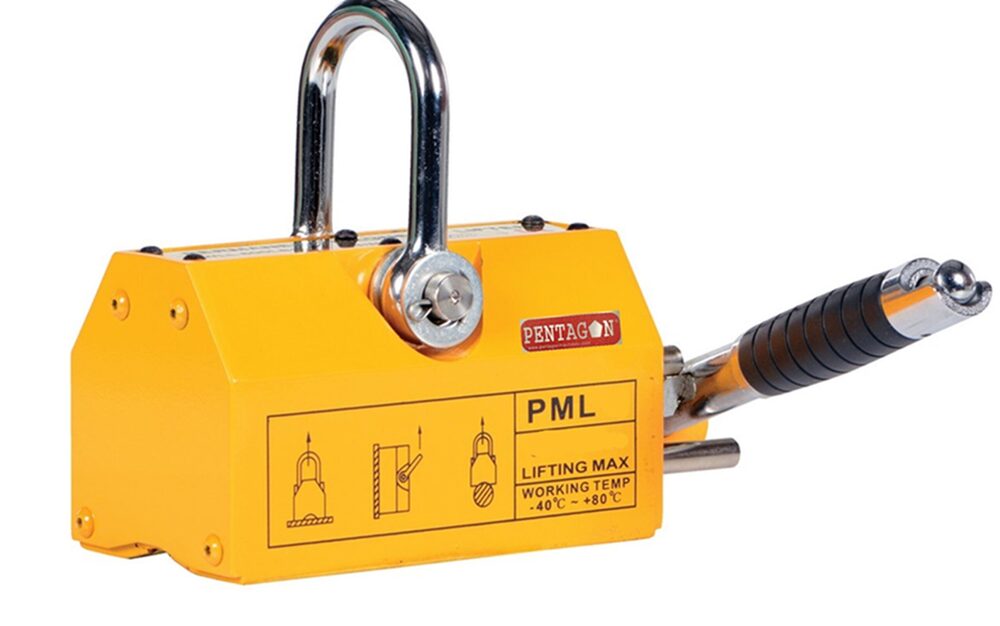

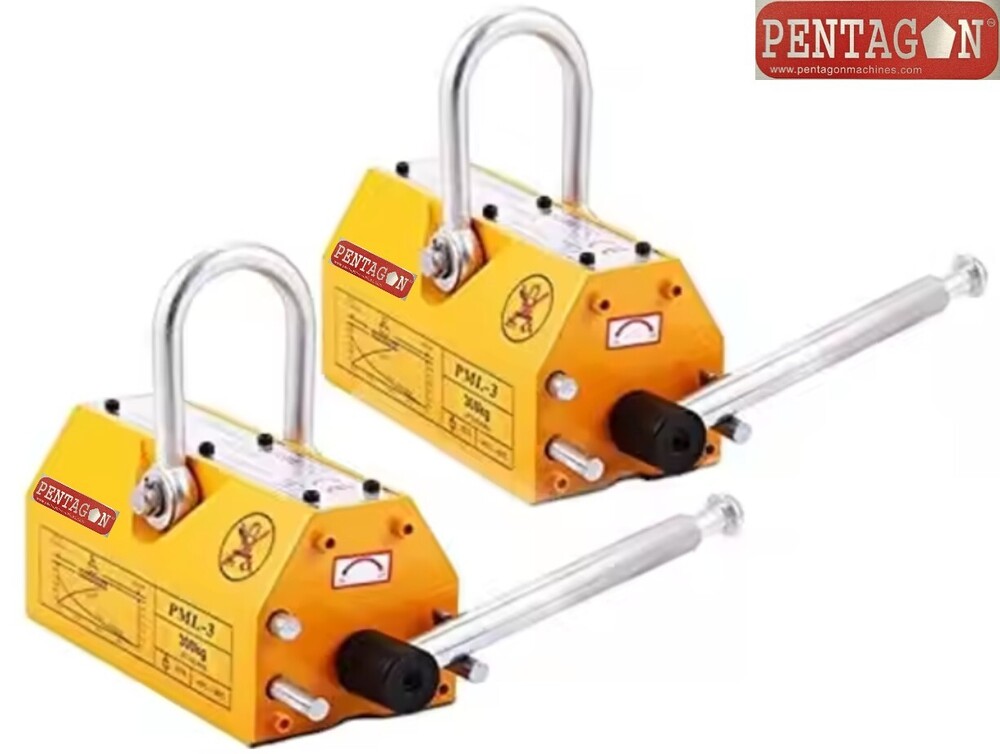

PENTAGON Permanent Magnetic Lifter model PML-2000 (Lifting Capacity - Flat -2000 Kg )

A Permanent Magnetic Lifter is a mechanical device designed to lift and transport ferromagnetic materials such as steel plates, bars, and castings without the need for external power sources. Utilizing high-strength permanent magnets, these lifters offer a safe, efficient, and cost-effective solution for material handling in various industries.

Features Included:
1. Used for lifting & handling of steel plates, heavy block & castings as well as heavy round or cylindrical parts
2. The 1 :2 safety factor of the recommended load to the test load ensures use at optimal working conditions even with substantial air gaps & surface conditions
3. Compact design, strong magnetic pull, total work safety
4. Easy operated lever for ON-OFF
5. Spring loaded block at side for safety feature.
6. Suitable for Flat & Round jobs
7. No damage on job during operation

Applications
Manufacturing Plants: For lifting heavy steel plates and components during production processes.
Construction Sites: Transporting large metal structures and reinforcements.
Shipyards: Handling heavy parts and materials in shipbuilding operations.
Warehouses and Logistics Centers: Efficiently moving ferromagnetic materials and goods.
Machine Shops: Lifting and positioning heavy machinery parts for assembly or maintenance.

Technical Specification

1. Model	PML-2000
2. Factor Of Safety	(1: 2 Times)
3. Lifting Capacity -Flat	2000 Kg
4. Tested Capacity -Flat	4000Kg
5. Width	170 mm
6. Length	460 mm
7. Height	185 mm
8. Weight	103 Kg

Premium Industrial Solution

The PML-2000 magnetic lifter stands out for its excellent build and reliable performance. Its design supports safe lifting in manufacturing, construction, and warehousing. The sturdy yellow finish not only adds visibility but also endurance against daily industrial use.

Available Across India

This magnetic lifter is widely supplied throughout India via various distributors, importers, manufacturers, producers, and wholesalers. Its accessibility ensures industries can maintain productivity with high-quality equipment that meets stringent standards.

FAQs of Magnetic Lifter model PML-2000:

Q: How is the Magnetic Lifter PML-2000 used in industrial environments?

A: The PML-2000 is primarily used to lift, move, and position steel plates, blocks, and cylindrical objects in industrial settings. Its strong magnetic force enables secure handling, enhancing workplace safety and efficiency.

Q: What are the primary benefits of using the PML-2000 Magnetic Lifter?

A: Using the PML-2000 reduces manual labor, minimizes load damage, and speeds up workflow. Its robust quality ensures longevity and consistent performance, making it a valuable asset in material handling operations.

Q: When should you use the PML-2000 Magnetic Lifter?

A: The magnetic lifter should be used whenever heavy ferromagnetic materials need to be lifted or transported swiftly without surface damage, especially in manufacturing plants, construction sites, and warehouses.

Q: Where can I purchase or source the PML-2000 in India?

A: The PML-2000 magnetic lifter is available nationwide through authorized distributors, suppliers, manufacturers, importers, producers, traders, and wholesalers specializing in industrial lifting solutions.

Q: What is the process for using the PML-2000 Magnetic Lifter safely?

A: To use the PML-2000 safely, position it securely on the clean, flat surface of the ferromagnetic load, activate the magnet with the lever, and ensure the load is stable before lifting. Always adhere to the products specified weight capacity to maintain safety standards.

Q: How does the yellow color of the PML-2000 benefit industrial operations?

A: The yellow color provides high visibility in busy industrial settings, helping workers easily identify the lifter and reducing the risk of accidental collisions or improper handling during material movement.
