PENTAGON Drilling cum Tapping Machine

PENTAGON Drilling cum Tapping Machine Specification

Spindle Speed
3 Steps - 480 / 900 / 1440 rpm

Cutting Area
Standard drilling and tapping area

Frequency
50 Hz

Table Size
250 x 250 mm

Motor Power
1 HP

Machine Type
Bench Type

Dimension (L*W*H)
550 x 400 x 950 mm

Condition
New

Diameter
Drilling: 13 mm max, Tapping: M10 max

Noise Level
Low

Features
Compact design, high precision, smooth operation, robust construction, easy to operate.

Product Type
Drilling cum Tapping Machine

Material
High Grade Cast Iron & Steel

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Manual

Voltage
415 V

Power
1 HP / 0.75 kW

Power Source
Electric

Weight (kg)
Approx. 120 kg

Capacity
13 mm (Drilling), M10 (Tapping)

Color
Blue and White

Usage & Applications
Suitable for precision drilling and tapping operations in workshops, tool rooms, and small manufacturing units.

Spindle Taper
MT-2

Distance from Spindle to Base
425 mm

Distance from Spindle to Table
290 mm

Table Adjustment
Vertical & Rotational

Number of Spindle Speeds
3

Chuck Size
13 mm

Coolant System
Optional

Spindle Travel
95 mm

Installation
Bench Mounted

Column Diameter
47 mm

About PENTAGON Drilling cum Tapping Machine

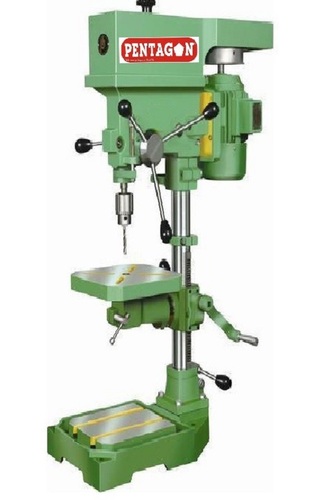

PENTAGON Drilling cum Tapping Machine

Model PDT20 with electrical motor Switch and electrical panel

Technical Specification

1. Tapping capacity in steel12 mm

2. Tapping capacity in cast iron16 mm

3. Tapping capacity in aluminium20 mm

4. Drilling capacity19 mm

5. Pillar diameter75 mm

6. Distance from spinde center to column surface200 mm

7. Table travel on column380 mm

8. Table size270x270 mm

9. Size of base480x300 mm

10. Spindle quill travel130 mm

11. Pillar length1170 mm

12. V belt sectionA-42"

13. Motor0.5hp/1HP/1440rpm/3Phase/380V/50HZ

Model PDT25 with electrical motor Switch and electrical panel

Technical Specification

1. Drilling capacity in steel25 mm

2. Tapping capacity in steel20 mm

3. Morse taper in spindleMT-3

4. Quill Movement120mm

5. No of spindle speeds8

6. Spindle speeds (rpm)80 to 3500

7. Distance from spindle center to column base200 mm

8. Maximum distance from spindle to basr plate900 mm

9. Maximum distance from spindle to work table650 mm

10. Table working surface250x250mm

11. Column diameter75mm

12. Base Plate480x310mm

13. V BeltB-54

14. Motor Power2 H.P, 1400rpm, 3 Phase

15. Net weight130kg

Installation Available: No

Parts Available: Yes

Exceptional Precision and Build Quality

Engineered from high-grade cast iron and steel, this machine delivers reliable and consistent results every time. Its spindle travel of 95 mm and robust column diameter of 47 mm support precise drilling and tapping for demanding tasks. The manual control system ensures accuracy, while the bench-mounted design saves valuable shop space.

Versatile Performance for Various Applications

With a capacity of 13 mm for drilling and M10 for tapping, the machine is suitable for a wide range of operations. Its three spindle speeds allow tailored performance for different job requirements. The vertical and rotational table adjustment further enhances flexibility, making it a preferred choice for workshops and manufacturing units.

User-Friendly, Safe, and Efficient

The semi-automatic operation and ergonomic design make this machine easy to operate. Low noise levels, stable base, and optional coolant system contribute to a comfortable and safe working environment. Designed for straightforward installation and maintenance, it supports continuous productivity without unnecessary downtime.

FAQ's of PENTAGON Drilling cum Tapping Machine:

Q: How do I install the PENTAGON Drilling cum Tapping Machine?

A: Installation is simple due to its bench-mounted design. Ensure the bench is stable and can support approximately 120 kg, connect the electric power supply (415 V/50 Hz), and secure the machine using proper mounting bolts.

Q: What is the maximum drilling and tapping capacity of this machine?

A: The maximum drilling capacity is 13 mm, while the tapping capacity reaches up to M10, making it suitable for a variety of standard metalworking tasks.

Q: When should I use the different spindle speed settings?

A: Use the lower speed (480 rpm) for larger diameter drilling or tougher materials, the medium speed (900 rpm) for standard tapping operations, and the high speed (1440 rpm) for smaller bits or softer materials to optimize performance and tool life.

Q: Where can this machine be effectively used?

A: It is ideal for precision tasks in workshops, tool rooms, and small manufacturing units. Its compact size and easy control make it suitable for tight spaces or bench setups.

Q: What is the process for adjusting the machine's table?

A: The table can be adjusted both vertically and rotationally. Loosen the adjustment levers, safely move the table to the desired position, and tighten the levers to secure it before commencing operations.

Q: How does the optional coolant system benefit operations?

A: The coolant system reduces heat build-up during drilling and tapping, prolonging tool life and improving surface finish. It also helps maintain the machine's performance during continuous or heavy-duty work.

Q: What are the main advantages of using this drilling cum tapping machine?

A: Key benefits include high precision, robust construction, smooth and quiet operation, ease of use, flexible performance, and durability due to the use of quality materials. These features ensure reliable results and operator comfort in professional settings.
