PENTAGON High Precision quick change Tapping Attachment model MT3-GT12 suitable for tapping range from M6-to M36

PENTAGON High Precision quick change Tapping Attachment model MT3-GT12 suitable for tapping range from M6-to M36 Specification

General Use
Industrial

Material
Cast Iron

Computerized
No

Automatic
No

CNC Or Not
Normal

Control System
Manual

Feature
ECO Friendly

Warranty
1 Year

PENTAGON High Precision quick change Tapping Attachment model MT3-GT12 suitable for tapping range from M6-to M36 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-10 Days

About PENTAGON High Precision quick change Tapping Attachment model MT3-GT12 suitable for tapping range from M6-to M36

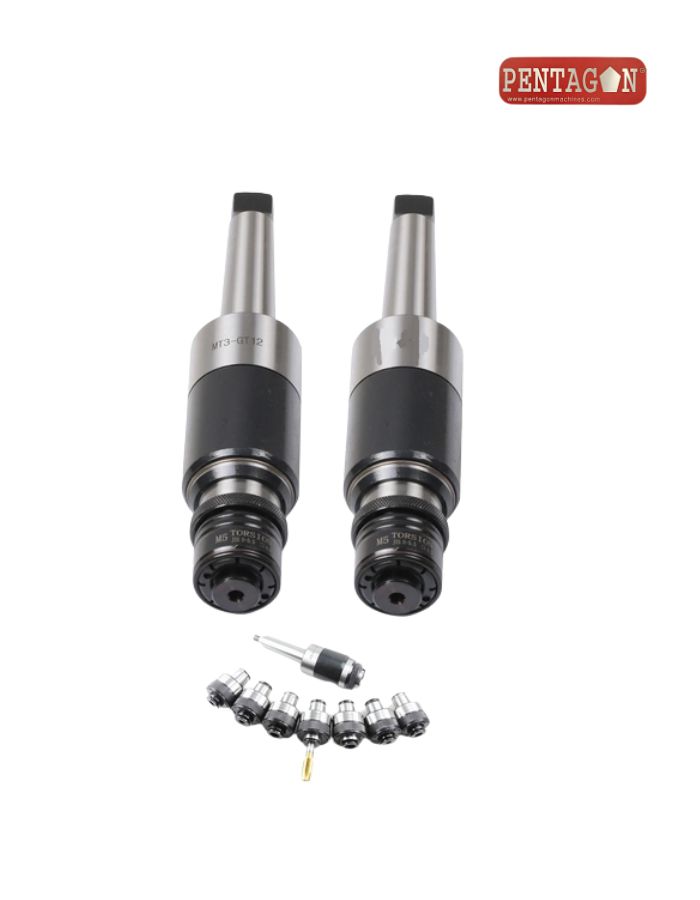

Quick Change Tapping Attachment MT3 GT12 (M6 to M36)

A high-precision tapping attachment designed for efficient, accurate, and safe tapping operations. Equipped with a GT12 quick-change collet system and MT3 shank, this tool is ideal for machining centers, drilling machines, and radial drills.

Key Features

Tapping Range: Suitable for metric threads M6 to M36
Shank Type: Morse Taper 3 (MT3)
Quick-Change System: GT12 collet type for fast tap replacement and secure holding
Safety Overload Clutch: Prevents tap breakage and machine damage
Axial Float / Length Compensation: Absorbs feed mismatch for precise threads
Auto-Reverse Mechanism: Ensures smooth withdrawal of tap after threading
Hardened & Ground Components: Long service life with minimal wear
Coolant Friendly: Designed for external flood or mist cooling systems

Technical Specifications

Model: MT3 GT12
Tapping Capacity: M6M36
Collet Type: GT12 Quick-Change
Reversing System: Mechanical self-reversing
Clutch: Adjustable torque safety clutch
Application Machines: Drill presses, milling machines, radial drills, and CNC machines with MT3 spindle

Precision and Versatility

The MT3-GT12 tapping attachment guarantees strong accuracy when working with threads from M6 to M36. Its cast iron construction provides a stable and long-lasting performance for both moderate and heavy-duty tapping applications. Designed for manual control, it is ideal for workshops that demand robust, repeatable results from their equipment.

Efficient Manual Operation

Unlike automatic solutions, this model offers a straightforward manual control system, suitable for users who prefer hands-on adjustment and direct involvement in the tapping process. Its quick-change mechanism allows fast transition between different tap sizes, enhancing workflow productivity and minimizing machine idle time.

Sustainable Industrial Choice

Being manufactured with eco-friendly features, the MT3-GT12 tapping attachment aligns with modern requirements for sustainable and responsible industrial practice. It is supplied by a reliable network of distributors, importers, and manufacturers across India, assuring easy access to after-sales support and services.

FAQs of PENTAGON High Precision quick change Tapping Attachment model MT3-GT12 suitable for tapping range from M6-to M36:

Q: How does the quick change mechanism work on the MT3-GT12 tapping attachment?

A: The quick change mechanism allows users to swap taps swiftly without the need for extra tools. Simply disengage the attachment, insert the desired tap (within the M6M36 range), and re-secure the mechanismsaving significant setup time during production runs.

Q: What materials can the MT3-GT12 tapping attachment be used with?

A: This tapping attachment is constructed from cast iron and is suitable for use on various industrial materials including cast iron components and other metals commonly encountered in industrial applications.

Q: When should I consider using this tapping attachment for my facility?

A: If your facility requires frequent and precise tapping in the M6M36 range, especially with manual or CNC machinery, the MT3-GT12 is an excellent choice. It is ideal for both batch production and custom job orders that require robust, reliable tapping equipment.

Q: Where can I purchase the MT3-GT12 tapping attachment in India?

A: The MT3-GT12 is available through multiple channels such as distributors, importers, manufacturers, suppliers, traders, and wholesalers across India. This ensures convenient access and competitive pricing for industrial buyers.

Q: What is the process for maintaining the MT3-GT12 tapping attachment?

A: Routine maintenance involves regular cleaning, inspection for wear or damage, and occasional lubrication of moving parts. Following manufacturer guidelines ensures longevity and consistent performance of the attachment.

Q: How can using the MT3-GT12 benefit my industrial operations?

A: The attachment streamlines tap changes, boosts productivity, reduces downtime, and offers reliable thread quality. Its manual control allows for quick operator adjustments, and its build quality promises longevity even in demanding conditions.

Q: Is the MT3-GT12 tapping attachment covered by a warranty?

A: Yes, this product comes with a one-year warranty that covers manufacturing defects, giving you peace of mind and support for uninterrupted industrial use.
